KETCOAUTOGUARD SERIES

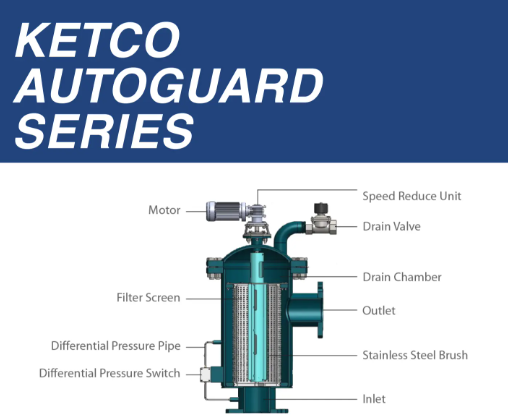

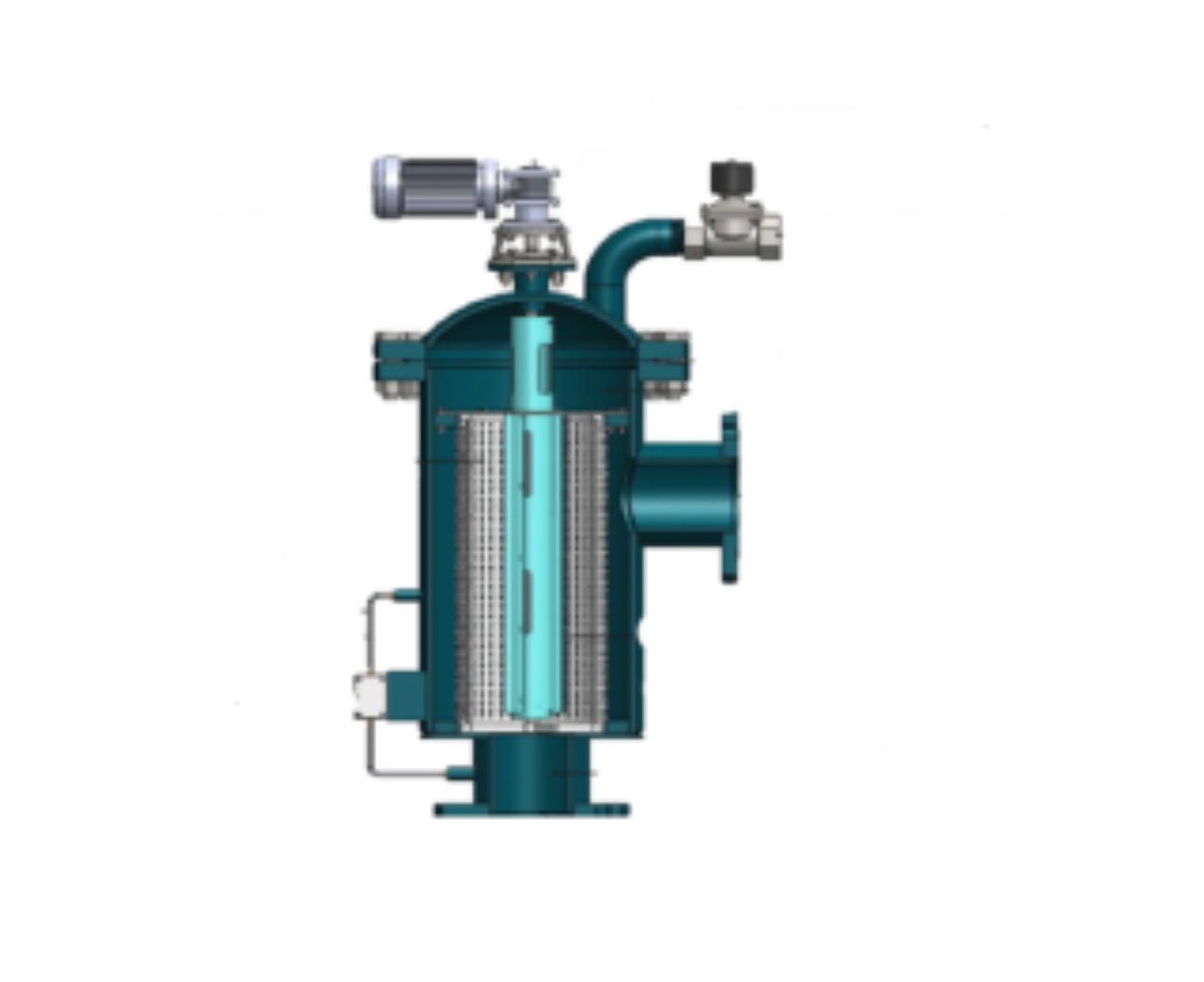

KETCO AUTOGUARD SERIES is an Automatic Self-Cleaning Filter designed for continuous industrial water filtration with automatic screen cleaning. During filtration, water flows through the filter screen from inside to outside, while the system starts the cleaning cycle when the outlet pressure reaches the set condition or the timer setting is triggered. The drain valve opens, the stainless steel brush removes trapped particles from the screen, and filtration resumes after the cleaning cycle, helping reduce manual maintenance and support stable system operation.

Summary Specifications

Material	SUS304, SUS316L, CS (Carbon Steel)
Strainer Material	SUS304, SUS316L
Inlet/Outlet	5", 6" Flange
Connection	ANSI Flange, JIS Flange, DIN Flange, BS
Type	Flange
Max. Pressure	1.6Mpa
Driven	PCB Control
Filtration	Single layer strainer
Cleaning	SS Brush
Control	Differential pressure & timer
Filtration rating	20 ~ 3000 micron
Cleaning time	10 ~ 60 seconds
Pressure lost	Less than 0.018MPa
Max. Temp.	95°C
Housing material	Carbon steel with inner epoxy coating, SS304, SS316L
Filter screen material	SS304, SS316L
Seal material	Graphite
