JNC CLEAL BM Cartridge Filter

View Product Catalog

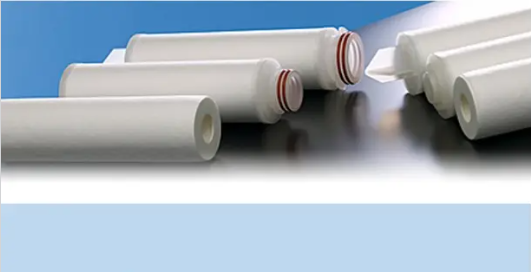

CLEAL BM FILTER Cartridges are Absolute Depth Filter Cartridges designed for long-life, binder-free, and surfactant-free liquid filtration. Made from polypropylene bi-component fibers with a thermally bonded 3D structure, they provide stable pore formation, strong differential pressure tolerance, and absolute filtration ratings from 1 to 15 micron. Their depth filtration structure supports longer service life, higher throughput, and reliable performance for plating, resin coating, washing water, chemicals, food and beverages, pure water, electronics, PCB, lead frames, and ceramic capacitor slurry applications.

Summary Specifications
MediaPolypropylene
End PartsPolypropylene
GasketsPE Form
O-ringNBR, EPDM, Silicone, FKM (Fluorine Rubber) E-FKM (Encapsulated Fluorine Rubber)
Absolute1, 3, 5, 7, 10, 15 micron
Double open endedID x OD x Length 29mm x 67mm x 125, 248, 250, 254, 496,500, 508, 743, 750, 762,992, 1000, 1016 mm
Single open endedID x OD x Length25mm x 70mm x 10”, 20”, 30”, 40”
Maximum Operating Temperature80°C (175°F)
Replacement Differential Pressure1.5bar (22psi)
