KETCO SPIRALFLOW

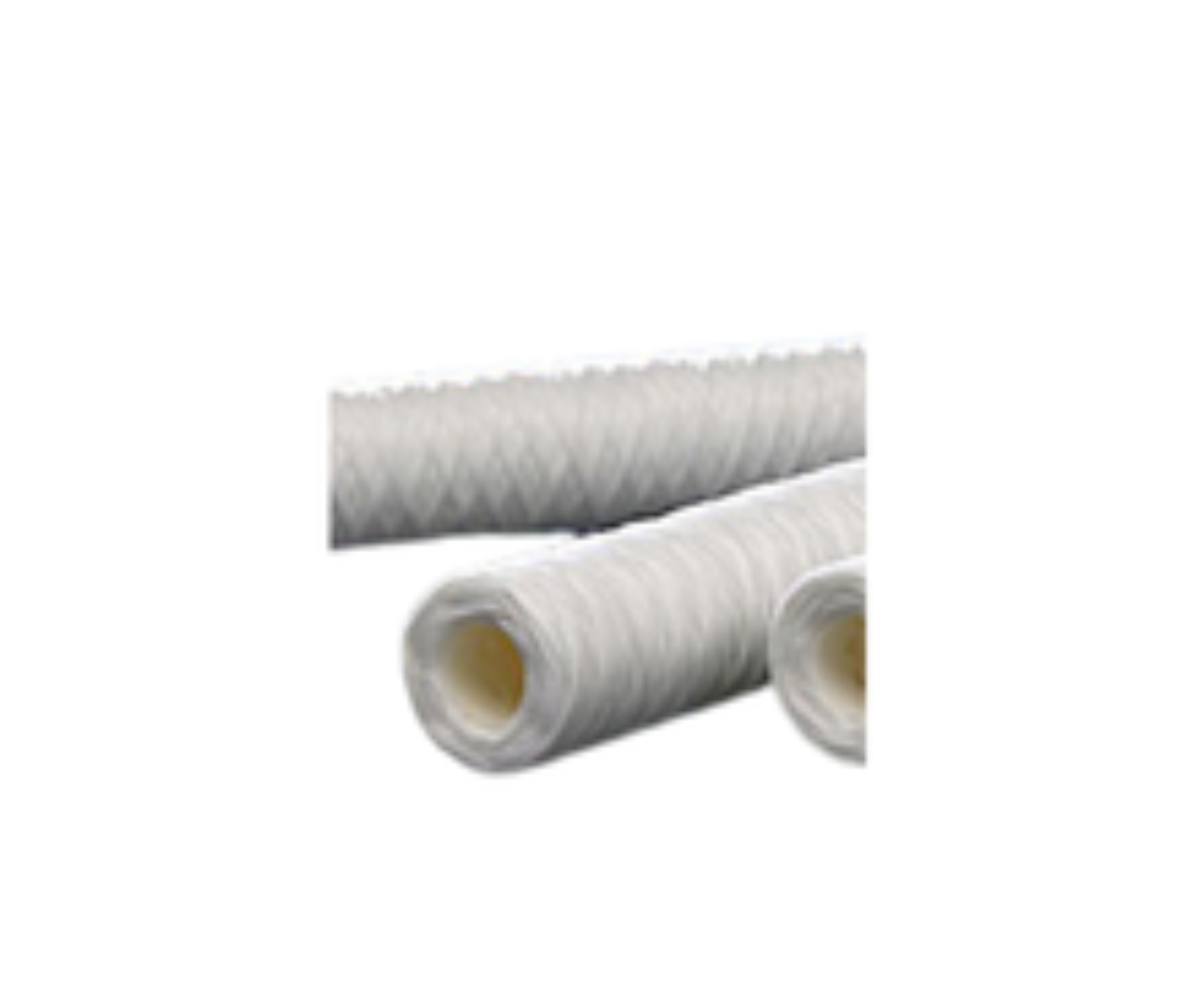

KETCO SPIRALFLOW is a String Wound Filter Cartridge designed for reliable industrial liquid filtration with high dirt-holding capacity and low pressure drop. Its innovative diamond-pattern winding helps capture larger particles on the outer layers and finer contaminants deeper inside, extending service life by up to 30–50% compared to traditional string wound designs. Available in polypropylene, bleached cotton, and glass fiber media, it supports a wide micron range and multiple end cap options for easy installation in standard filter housings.

Summary Specifications

Filter Media	Polypropylene, Bleached Cotton, Glass Fiber
Filtration Efficiency	≥90% Nominal Efficiency
Outer Diameter	63 mm (2.5")
Lengths Available	10", 20", 30", 40"
End Cap Configuration	DOE, SOE (222/226 with Flat or Fin)
Gasket/O-Ring	EPDM, Buna-N, Silicone, Viton
Recommended Change-Out Diff. Pressure	1.5–2.5 bar (21–36 psi)
Max. Differential Pressure	3.4 bar (50 psi) @ 25°C
Chemical Compatibility	Excellent with Acids, Alkalis, and Solvents
