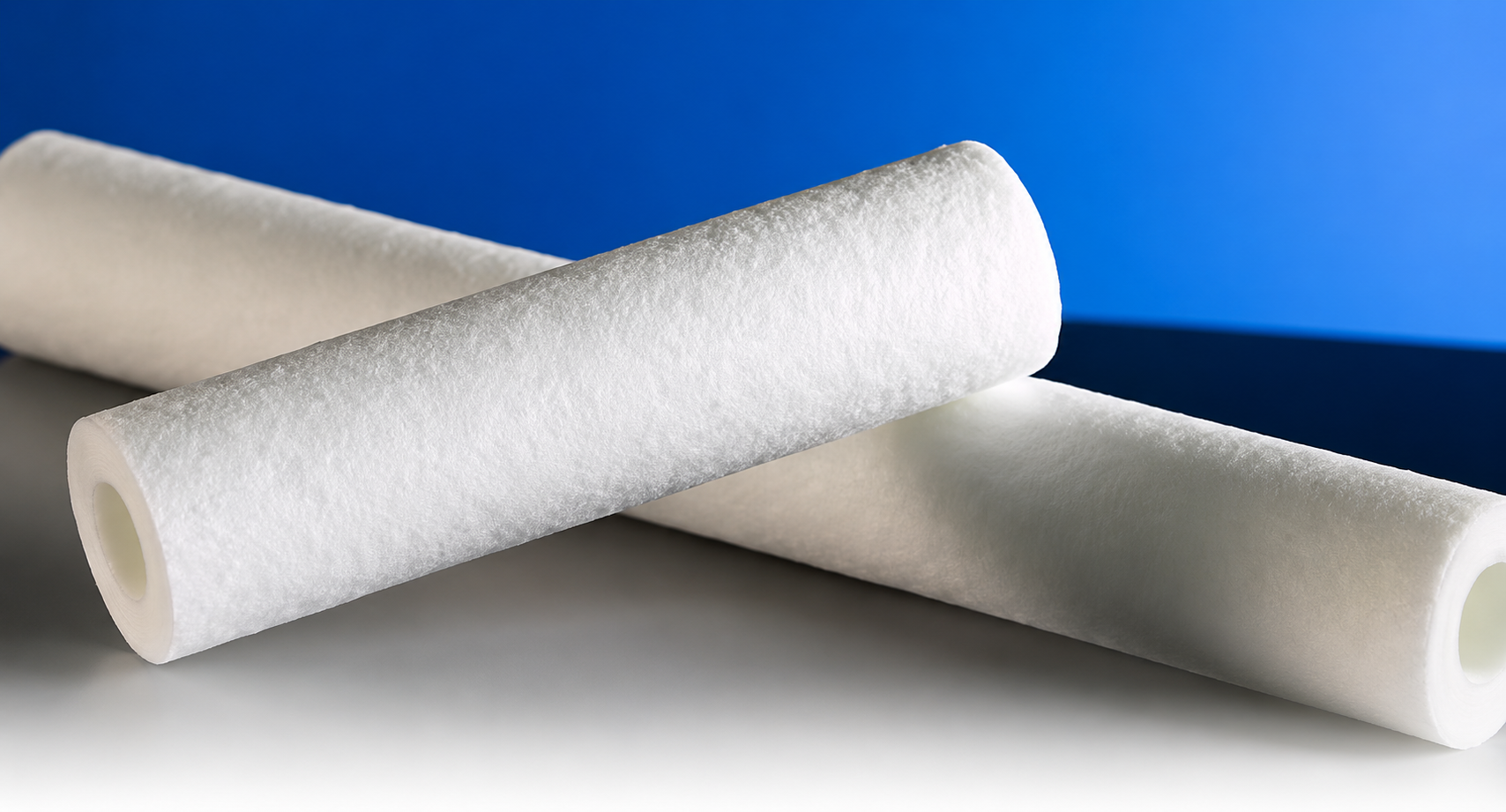

CLEAL CP2 FILTER Cartridges

CLEAL CP2 FILTER Cartridges are Surfactant-Free Cartridge Filters designed for clean, long-life liquid filtration with no spin finish and no initial foaming during filtration. Made from special thermally bonded polypropylene bi-component fibers developed by JNC, the cartridge forms a rigid self-bonding structure with uniform porosity, high pressure tolerance, and stable filtration performance. With nominal micron ratings from 0.3 to 350 micron, it is suitable for plating, washing water, service water, resins, adhesives, oils, solvents, beverages, pure water, optical fiber cleaning, optical films, PCB, lead frames, and other industrial process applications.

Summary Specifications

Media	Polypropylene
End Parts	Polypropylene
O-ring	NBR, EPDM, Silicone, FKM (Fluorine Rubber) E-FKM (Encapsulated Fluorine Rubber)
Nominal	0.3, 0.5, 0.7, 1, 3, 5, 10, 25, 50, 75, 100, 150, 200, 350 micron
Double open ended	ID x OD x Length30mm x 62mm x 125, 248, 250, 254, 496,500, 508, 743, 750, 762, 992, 1000, 1016 mm
Single open ended	ID x OD x Length25mm x 70mm x 10”, 20”, 30”, 40”
Maximum Operating Temperature	80°C (175°F)
Replacement Differential Pressure	1.5bar (22psi)
Maximum Differential Pressure	5.5bar (100psi) @ 20°C (68°F)
