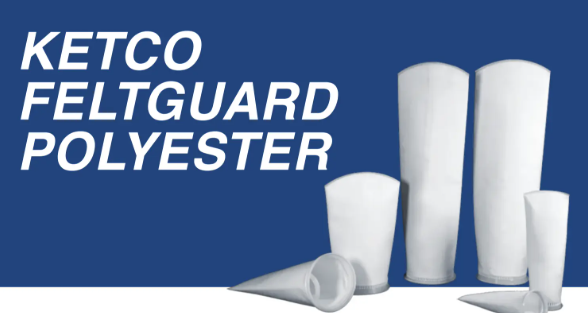

KETCO FELTGUARD POLYESTER

KETCO FELTGUARD POLYESTER is a Polyester Felt Filter Bag designed for reliable industrial liquid filtration. Made from durable polyester felt, it provides strong particle retention, high tensile strength, and stable performance under pressure. This filter bag is lightweight, easy to install, and compatible with standard bag filter housings, with sewn or heat-welded seam options to reduce bypass and improve durability. It also offers good chemical and temperature resistance, making it suitable for water treatment, food and beverage, chemical processing, automotive, metalworking, textile, and paper industry applications.

Download Product Catalog

Summary Specifications

Material	Polyester Needelefelt
Ring	Steel, Stainless steel, Plastic
Max. Operating Temp.	120°C
Max. Diff. Pressure	2.5 bar
Max. Change-out Diff. Pressure	0.8 - 1.5 bar (subject to application)
Seal	Sewn, Heat Welded
Size	1. Diameter (mm) : 178 (7")Length (mm) : 420 (17")Filtration area : 0.24m 2. Diameter (mm) : 178 (7") 3Length (mm) : 810 (32")Filtration area : 0.48m 3. Diameter (mm) : 102 (4")Length (mm) : 230 (9")Filtration area : 0.08m 4. Diameter (mm) : 102 (4")Length (mm) : 410 (16")Filtration area : 0.16m
Max. Flow Rate	Size 1 20m³/hr Size 2 40m³/hr Size 3 6m³/hr Size 4 12m³/hr
