KETCOFLOWGUARD SB

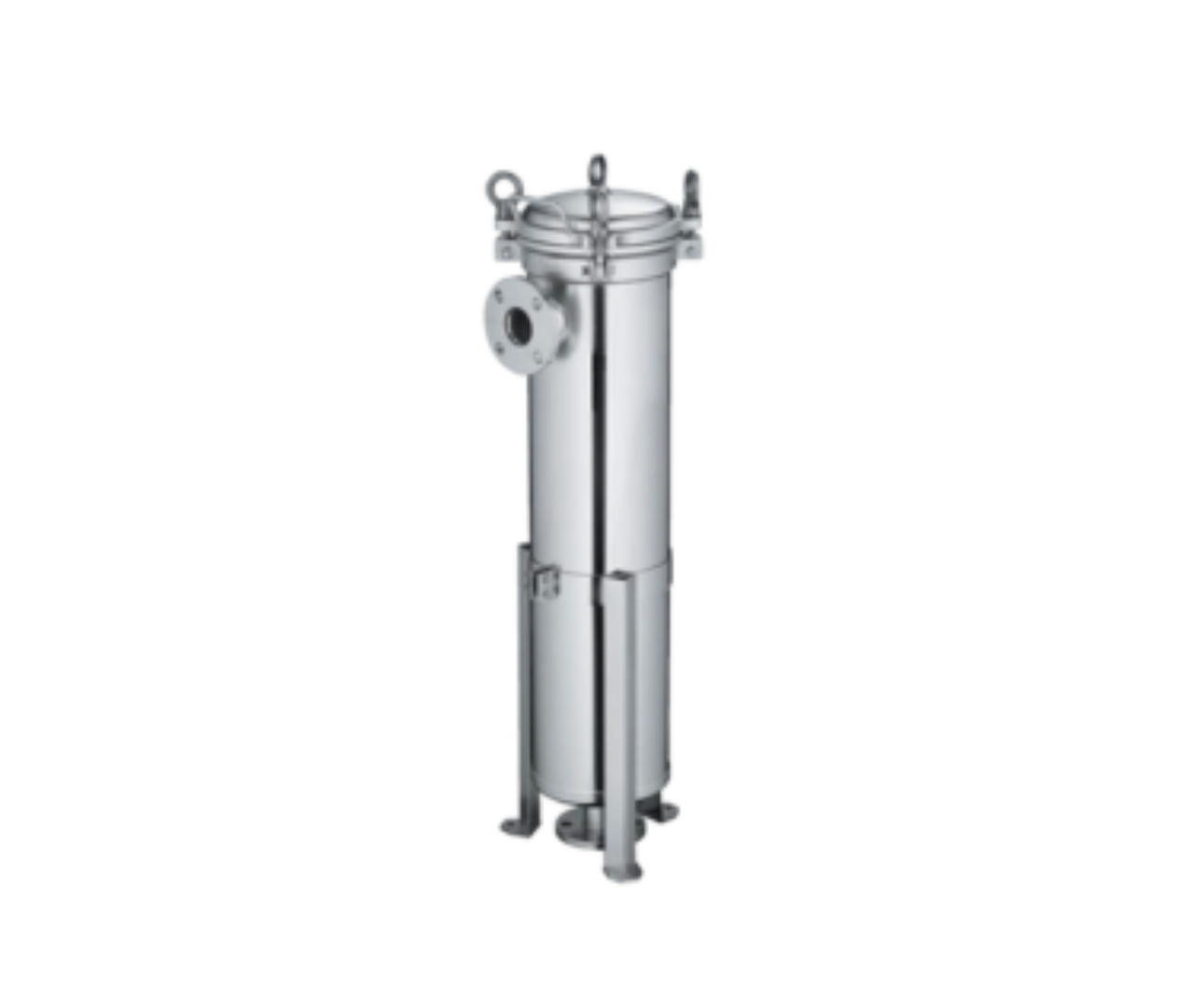

KETCO FLOWGUARD SB is a Swing Bolt Bag Filter Housing designed for secure, high-integrity liquid filtration in demanding industrial applications. Built with SS304 or SS316L stainless steel, it supports pressure operation up to 10 bar, easy bag change-out with swing bolt and nut closure, and positive seal bag seating to reduce bypass and improve filtration efficiency. It is compatible with multiple bag sizes and available with ANSI, DIN, or Tri-Clamp connections for flexible system integration.

Summary Specifications

Model Name	FlowGuard SB
Bag Sizes Supported	#1 (Ø7”x17”), #2 (Ø7”x32”), #3 (Ø4”x8”), #(Ø””)() #4 (Ø4”x14”)
Material of Construction	SS304 or SS316L
Closure Type	Swing Bolt & Nut
Design Pressure	Max. 10 bar (145 psi)
Design Temperature	Up to 120°C (based on gasket material)
Inlet/Outlet Connections	2” or 3” ANSI/DIN Flanged
Seal/Gasket Options	Buna-N (standard),Silicone, EPDM, Viton, PTFE (il)( PTFE (optional)
Surface Finish	Sandblasted
Installation Orientation	Vertical
Lid Type	Domed Lid with swing bolt
