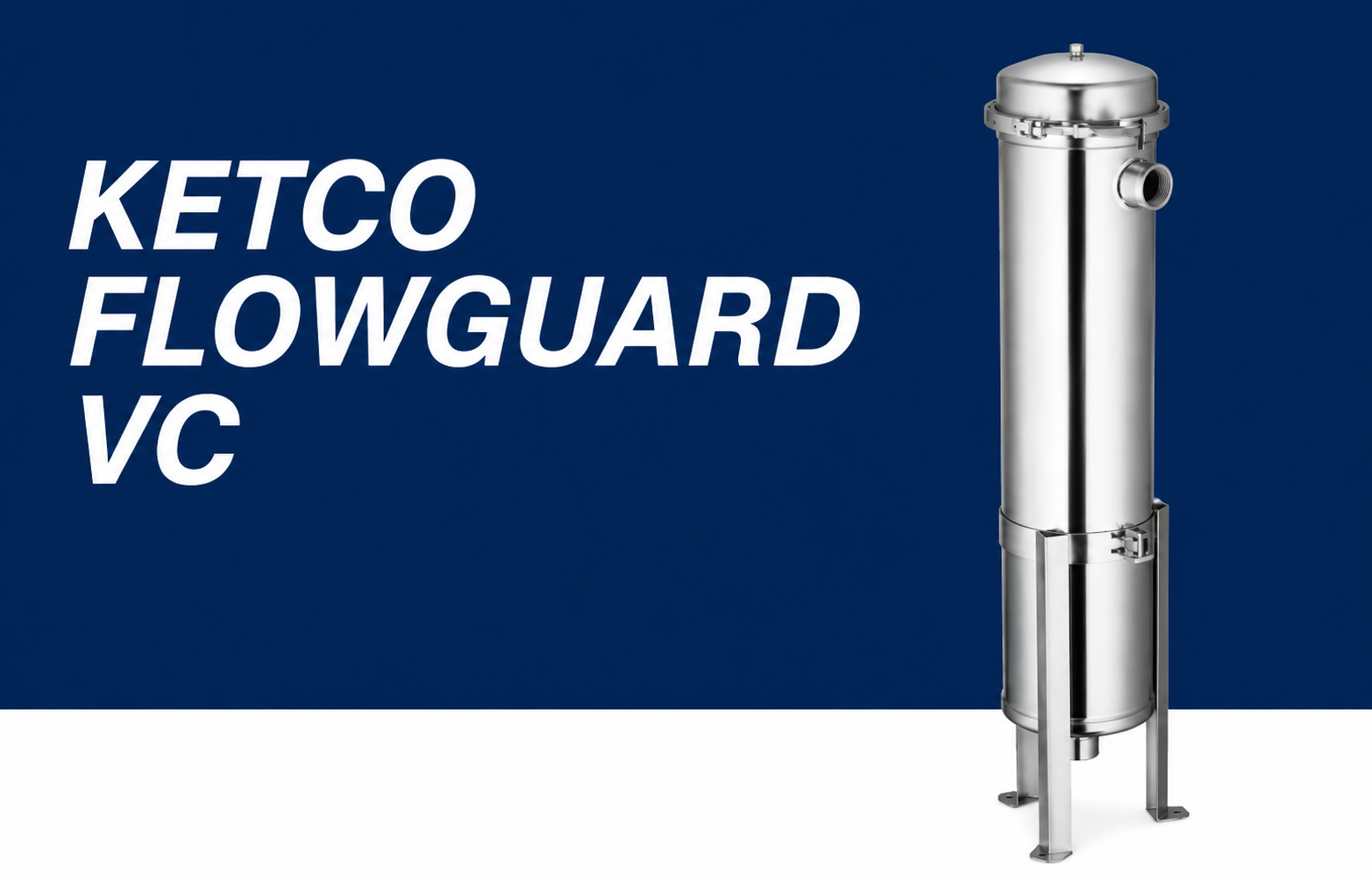

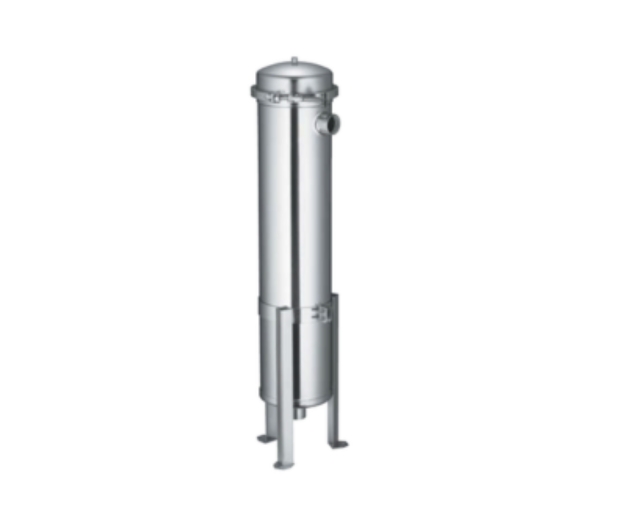

KETCO FLOWGUARD VC
KETCO FLOWGUARD VC is a V-Clamp Bag Filter Housing designed for light-duty industrial liquid filtration with fast, tool-free filter bag replacement. Built with an SS304 stainless steel body, it features a V-clamp quick-release closure, compact vertical design, threaded NPT connections, and positive bag sealing to reduce bypass. It supports #1 and #2 bag sizes, making it suitable for general industrial water filtration, plating baths, food and beverage pre-filtration, paints, inks, coatings, and cooling tower side-stream filtration.
Summary Specifications
| Model Name | FlowGuard VC |
|---|---|
| Bag Size Supported | #1 (Ø7" x 17") and #2 (Ø7" x 32") |
| Material of Construction | SS304 |
| Closure Type | V-Clamp Quick-Release |
| Design Pressure | Max. 7 bar (100 psi) |
| Design Temperature | Up to 100°C (depending on gasket material) |
| Inlet/Outlet Connection | 2” NPT Threaded (Standard) |
| Seal/Gasket Options | Buna-N (standard), EPDM, Viton (optional) |
| Surface Finish | Sandblast |
| Vent/Drain Ports | ¼” NPT (Optional) |
| Installation Orientation | Vertical |
| Recommended Flow Rates | #1: Up to 20 m³/hr #2: Up to 40 m³/hr |
