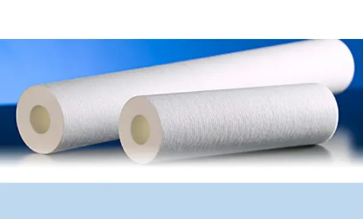

CLEAL CP FILTER Cartridges

CLEAL CP FILTER Cartridges are Binder-Free Cartridge Filters designed for clean and stable liquid filtration across industrial, chemical, food and beverage, and electronics applications. Made from thermally bonded polyethylene and polypropylene bi-component fibers, the cartridge forms a rigid self-bonding structure that helps maintain stable porosity, reduce media migration, and support consistent filtration performance. With nominal micron ratings from 1 to 200 micron, it provides long service life, high throughput, and reliable filtration for cleaning water, paints, inks, resins, solvents, beverages, pure water, PCB, FPC, and other process liquids.

Summary Specifications

Media	Polyethylene and Polypropylene
End Parts	Polypropylene
O-ring	NBR, EPDM, Silicone, FKM (Fluorine Rubber) E-FKM (Encapsulated Fluorine Rubber)
Nominal	1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200 micron
Double open ended	ID x OD x Length 30mm x 68mm x 125, 250, 254, 500, 508, 750, 762, 1000, 1016 mm 28mm x 64mm x 124, 127, 248, 254, 496, 508, 743, 762, 992, 1016 mm
Single open ended	ID x OD x Length25mm x 70mm x 10”, 20”, 30”, 40”
Maximum Operating Temperature	80°C (175°F)
Replacement Differential Pressure	1.5bar (22psi)
Maximum Differential Pressure	5.5bar (100psi) @ 20°C (68°F)
