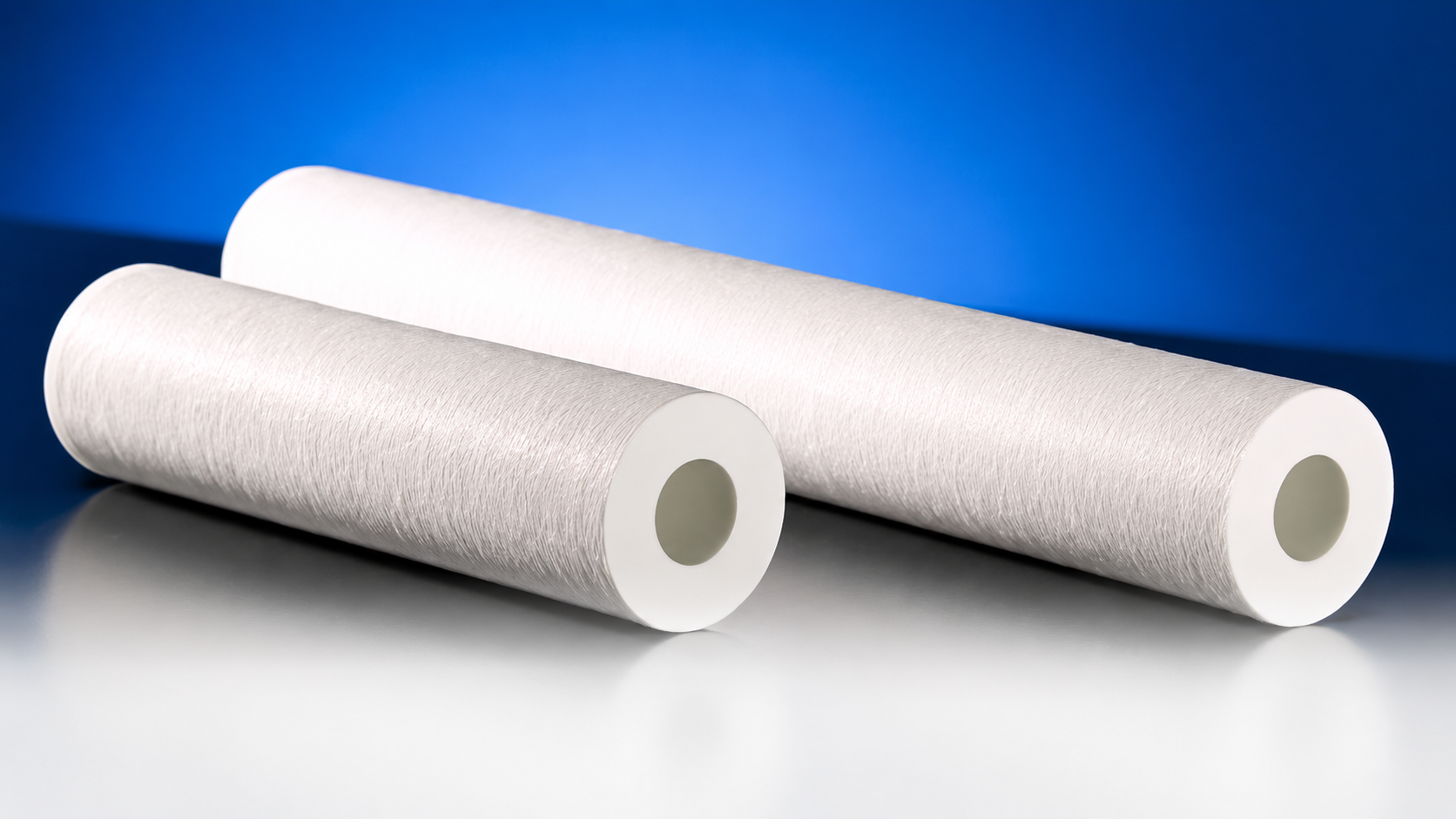

CLEAL CPH FILTER Cartridges

CLEAL CPH FILTER Cartridges are Polyester Filter Cartridges designed for stable, binder-free liquid filtration with strong chemical compatibility and reliable performance. Made from thermally bonded bi-component polyester fibers, the cartridge forms a stable pore structure that helps reduce pore size variability and fiber migration while supporting long service life and higher throughput. It is suitable for aluminum rolling, canning, alumite treatment, washing liquid, paints, inks, resins, adhesives, solvents, food and beverages, and optical film applications.

Summary Specifications

Media	Polyester
End Parts	Polybutylene terephthalate
O-ring	NBR, EPDM, Silicone, FKM (Fluorine Rubber) E-FKM (Encapsulated Fluorine Rubber)
Nominal	1, 3, 5, 10, 25, 50 micron
Double open ended	ID x OD x Length28mm x 62mm x 125, 248, 250, 254, 496, 500, 508, 743, 750, 762, 992, 1000, 1016 mm
Single open ended	ID x OD x Length25mm x 70mm x 10”, 20”, 30”, 40”
Maximum Operating Temperature	80°C (175°F)
Replacement Differential Pressure	1.5bar (22psi)
