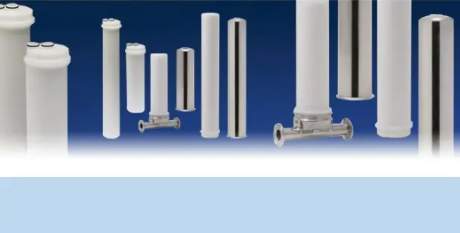

CAPSULER RP

CAPSULER RP is an Enclosed System Filter designed for clean, fast, and efficient filtration in slurry and process liquid applications. Its capsule system helps reduce labor, keep operators’ hands clean, and limit operator exposure during filter change, while the improved flow path supports longer service life even in high-concentration slurry solutions. It can incorporate CP, GF, CP2, BM, and AS filter elements, making it suitable for plating, resin coating, washing processes, automotive paint, pigments, adhesives, coating agents, optical fiber cleaning solutions, PCB, lead frames, electrolyzed copper foils, and ceramic capacitor slurry applications.

Summary Specifications

Filter Body	Polypropylene
O-ring	EPDM
Clack Valve etc.	PP / SUS304
Dimension	OD x Length : 89mm x 214, 340, 590 mm
Material	SUS304/SCS13
Connection bore	1S ferrule
Maximum Differential Pressure	0.35MPa (50psi) @ 20°C (68°F)
